10kV Power On Off Small Relay 10kV 1 Pole 3A G5NB-1A-E-24VDC

The power relay is a 10kV 1-pole 3A on-off small relay G5NB-1A-E-24VDC with an impulse voltage resistance

A 1-pole 3A on-off small relay with an impulse voltage resistance of 10kV

High-power electromagnetic circuits are adopted to achieve high sensitivity (200mW). The small relay can ensure a 10kV impulse voltage resistance. The standard product has obtained UL, CSA, and VDE certifications. The application complies with EN61010 reinforced insulation standards.

Actual Load Life (Reference Values)
1.120 VAC motor and lamp load2.5A surge and 0.5A normal.250,000 operations min. (at 23°C)2.160 VDC valwve load (with varistor)
0.24A:
250,000 operations min. (at 23"C)3. 140 VAC pump loadInrush: 5.4 A (o-p), Steady state: 1.6 A200,000 operations min. (Ambient temperature: 23°C)4. 100 VAC motor loadInrush: 10.7 A (o-p), Steady state: 1.1 A200,000 operations min.(Ambient temperature: 23°0)

Power consumption reduction of coil with pulse widthmodulation(PWM)
*Models with PWM drive capability(-PW)can reduce coilholding current with PWM control. This function reduces powerconsumption by reducing the current held by coil.Apply the rated voltage for at least 100 ms at the time of relayoperation.
*The following are our verification conditions. When using, it besure to check the actual machine under the actual usageconditions.
mExample of drive circuit mConditions of validationcarried out by OMRON

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.

10kV On off Small Relay

Power On off Small Relay

G5NB-1A-E-24VDC

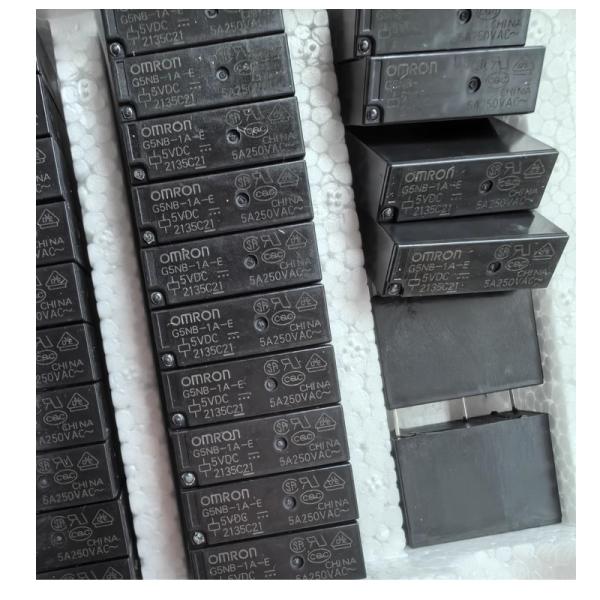

10kV Power On Off Small Relay 10kV 1 Pole 3A G5NB-1A-E-24VDC Images
