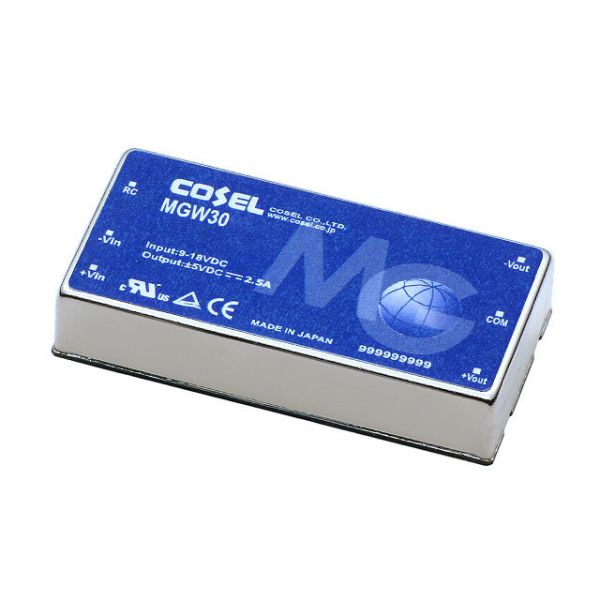

Isolated DC/DC Converters 30W 15V/30V 1A power module MGW304815-R
MODEL MGW1R50512 MGW1R50515 MGW1R51212 MGW1R51215 MGW1R52412 MGW1R52415 MGW1R54812 MGW1R54815
MAX OUTPUT WATTAGE[W] 1.56 1.50 1.56 1.50 1.56 1.50 1.56 1.50
DC OUTPUT VOLTAGE[V] *1 ±12 or +24 ±15 or +30 ±12 or +24 ±15 or +30 ±12 or +24 ±15 or +30 ±12 or +24 ±15 or +30
CURRENT[A] 0.065 0.05 0.065 0.05 0.065 0.05 0.065 0.05
SPECIFICATIONS
MODEL MGW1R50512 MGW1R50515 MGW1R51212 MGW1R51215 MGW1R52412 MGW1R52415 MGW1R54812 MGW1R54815
INPUT
VOLTAGE[V] DC4.5 - 9
(Surge voltage 12.5V, 100ms max)
DC9 - 18
(Surge voltage 25V, 100ms max)
DC18 - 36
(Surge voltage 50V, 100ms max)
DC36 - 76
(Surge voltage 100V, 100ms max)
CURRENT[A] *2 0.38typ 0.38typ 0.16typ 0.16typ 0.080typ 0.079typ 0.041typ 0.040typ
EFFICIENCY[%] *2 83typ 81typ 83typ 81typ 82typ 80typ 81typ 80typ
OUTPUT
VOLTAGE[V] ±12 or +24 ±15 or +30 ±12 or +24 ±15 or +30 ±12 or +24 ±15 or +30 ±12 or +24 ±15 or +30
CURRENT[A] 0.065 0.05 0.065 0.05 0.065 0.05 0.065 0.05
LINE REGULATION[mV] 60max 75max 60max 75max 60max 75max 60max 75max
LOAD REGULATION[mV] *3 480max 600max 480max 600max 480max 600max 480max 600max
*4 600max 750max 600max 750max 600max 750max 600max 750max
RIPPLE[mVp-p] *5 150max 150max 150max 150max 150max 150max 150max 150max
RIPPLE NOISE[mVp-p] *5 200max 200max 200max 200max 200max 200max 200max 200max
TEMPERATURE REGULATION[mV]-20 to +85C 210max 260max 210max 260max 210max 260max 210max 260max-40 to +85C 320max 390max 320max 390max 320max 390max 320max 390max
DRIFT[mV] *6 48max 60max 48max 60max 48max 60max 48max 60max
START-UP TIME[ms] 30max (Minimum input, Io=100%)
OUTPUT VOLTAGE SETTING[V] 11.64 - 12.36 14.55 - 15.45 11.64 - 12.36 14.55 - 15.45 11.64 - 12.36 14.55 - 15.45 11.64 - 12.36 14.55 - 15.45
PROTECTION CIRCUIT OVERCURRENT PROTECTION Works over 105% of rating and recovers automatically
ISOLATION INPUT-OUTPUT DC1,500V or AC1,000V 1minute, Cutoff current=10mA, DC500V 1,000MW min (20±15C)
ENVIRONMENT
OPERATING TEMP.,HUMID.AND ALTITUDE-40 to +85C, 20 to 95%RH (Non condensing) (Required derating), 5,000m (16,400feet) max
STORAGE TEMP.,HUMID.AND ALTITUDE-40 to +100C, 20 to 95%RH (Non condensing), 9,000m (30,000feet) max
VIBRATION 10 - 55Hz 98.0m/s2 (10G), 3minute period, 60minutes each along X, Y and Z axis
IMPACT 490.3m/s2 (50G) 11ms, once each along X, Y and Z axis
SAFETY AGENCY APPROVALS UL60950-1, C-UL, EN60950-1
OTHERS CASE SIZE/WEIGHT 17.0X12.0X8.5mm [0.67X0.48X0.34 inches] (WXHXD) / 4g max
COOLING METHOD Convection/Forced air
